PRODUCT: Standard Horizontal Z
ITEM ID: XZH516, XZH5163, XZH716, XZH58
PATENTED
XZH - Provides clean and consistent horizontal transition between panels. Designed to work in conjunction with Vertical Reveal and Siding H Mold. XZH5163 - Design affords greater reveal flexibility up to 2-1/2" while working in conjunction with Vertical Reveal and Siding H-Mold.

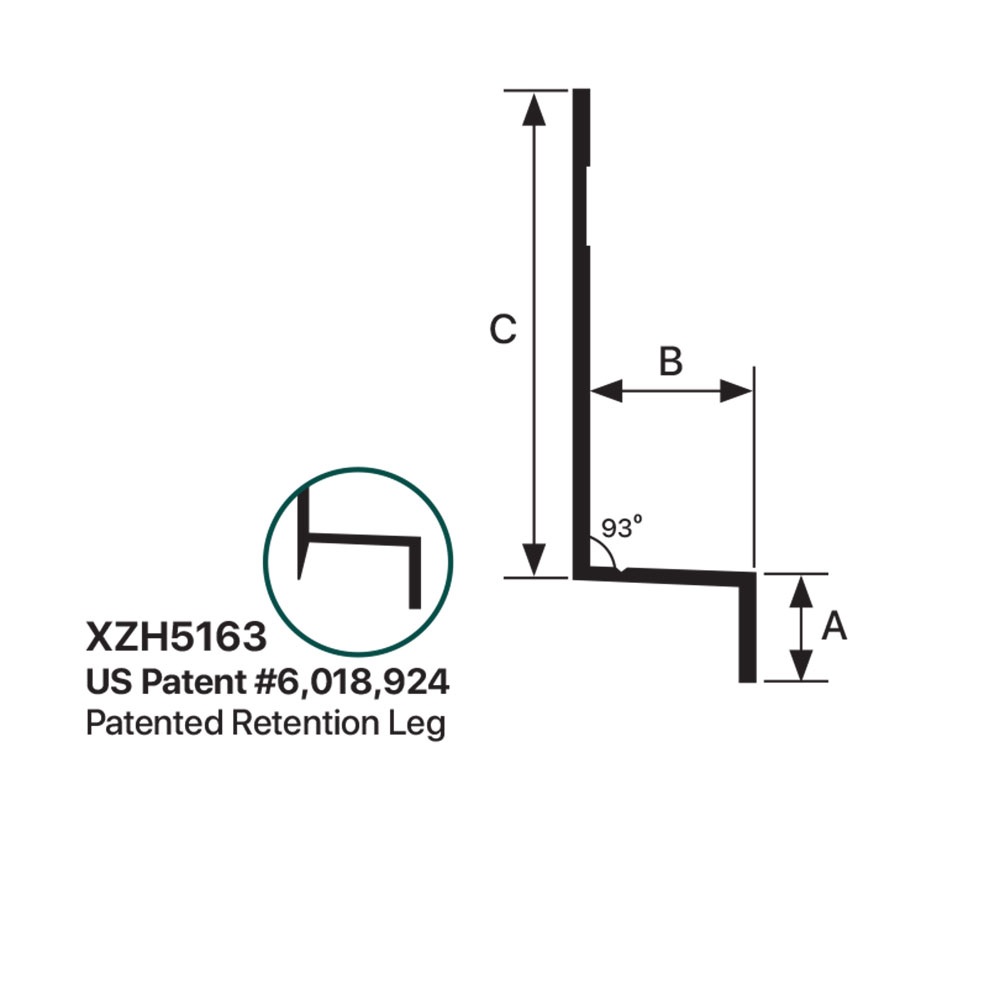

| ITEM ID | "A" | "B" | "C" |
|---|---|---|---|
| XZH516 | 3/8" | 15/32" | 1-1/2" |
| XZH5163 | 3/8" | 15/32" | 3-1/2" |
| XZH716 | 3/8" | 1/2" | 1-3/8" |
| XZH58 | 1/2" | 3/4" | 1-1/2" |
AVAILABLE COLORS:
MATERIALS: 6063-T5 .050" ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
FINISHES: Unless specified all XtremeTrim® items are provided in primed finish. Also available in popular siding/soffit colors in standard face only color match or full coverage CoastalColorCoating™. Clear Anodized and custom anodized are available (minimums apply).
NOTE: Do not install XtremeTrim® Horizontal Z on horizontal applications where the exterior flange can catch water.
