Plywood Clip

Aluminum Plywood Clips were introduced in 1971 as our first product

Tamlyn 7/16" Steel Plywood Clips are recommended by Huber Engineered Woods Zip System

DESIGN FEATURES: For quick, easy installation between plywood panels for roof sheathing or panelized construction .. provide structural support .. reduce normal plywood deflection between panels .. embossed dimples/built-in spacer type feature provide APA recommended 1/8" gap.

NOTE: Poor attic ventilation can also cause excessive sheathing deflection

MATERIAL: PC - extruded mill aluminum, PCS - 20 ga. galvanized steel

Product Detail
  • PCS
  • PC

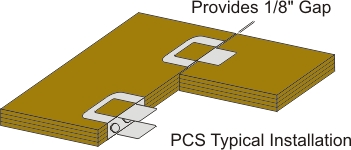

  • PCS Installation

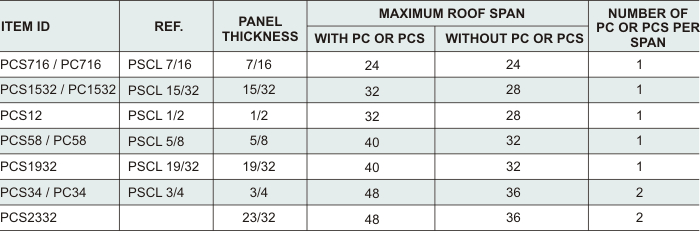

Load Table
